Light Duty Conveyor for Small Parts UK Manufactured

C-Trak small conveyors perfect for moving micro parts where there is a limited space on the production floor.

Light duty mini conveyor

Let us help find the right conveyor belts for your products call us now for tips on buying just click on the link below if your on a mobile.


Our mini range are available in stainless steel, mild steel or aluminum to suits your product application and budget. With optional caster wheels for portability. This is our most popular solution for moving electronics and micro electrical components at affordable prices.

Alternatively you may like to view our extendable range for easy loading were mobility is imperative read more >>

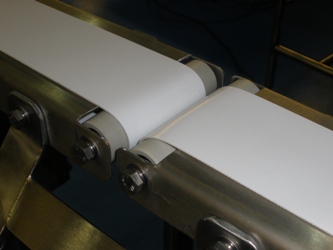

Small Mini Conveyors showing transfer small conveyors photo Small Conveyors showing a pound coin

Video collection of C-Trak Light Duty Small Conveyors

Small food quality mini belt conveyor our best seller

All C-Trak small conveyors are supplied with a full guarantee and adjustable angled legs from level to 30 degrees. Standard height adjustment giving 800mm to 1200mm top of belt.

More Options

  • Width 100mm ~ 300mm in 50mm increments
  • Length 500mm ~ 2500mm in 100mm increments
  • Bespoke sizes made to order
  • Speeds 4m to 40m/m
  • Fixed or variable speeds offered
  • End Drums 32mm dia for close transfers
  • Optional extras - side guides & mobile frame
  • Our mini range can handle products up to 20kg

Desk Top Conveyor for transporting light weight goods for a film prop with a media company

Desk Top Conveyor

Care is taken with every design and fabrication of our systems offering cost effective solutions transporting light to medium weight products under power, giving excellent transfer.

Short Length Conveyor Small Conveyor image for pharmaceutical company Inclined small grippy belt conveyor

The application on the left was for a local customer requiring to very short lengths of conveyor side by side in modular belting for his packaging line.

In the center was a pharmaceutical company conveying pills.

On the right hand side was an personal care in plastic tube product being elevated on a very sticky belt enabling the angle to be very acute without product fall back.

DeskTop Coding Conveyor in Aluminium

C-Trak supplies a standard range of belt conveyors for larger applications with low maintenance suitable for the food, pharmaceutical as well as industrial environments read more >>
