How to Transfer products from Conveyor to Conveyor
Conveyor Transfer Plates
What's the cheapest ways to transfer products on conveyors?

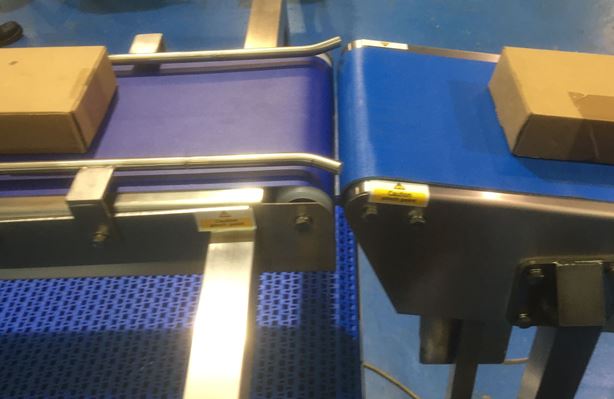

Cost will be determined by the type of conveyor and products you need to transfer but the simplest and most cost effective way to transfer products on conveyors is with a transfer plate. However close transfers from conveyor to conveyor are achieved by the size of end rollers to created closer transfer
Transfer Plates
Some applications of transferring products from one line to another can simply be sorted by using transfer plates or 90 degree angles.
90° Transfer Conveyors
This application uses a automatic sensor and pushes the product (pastry pack) from one modular belt line to another achieving a 90 degree angle.
This application transfers products from mini rollers with a side arm onto a white flat belt conveyor.
Twin Side Belt Transfers
Automated twin grip belts can be used to transfer products often used when labeling, coding, printing and inspection.
Two Lineshaft Rollers merging on a bend.
Roller Transfer Conveyors
Pallet Turners
Right Angle Transfer
Rotary Table Transfers
Transfers discharging and loading to and from conveyors for more information and video please click on our Turntable & Lazy Susan applications
Sliding Pusher Plate
To transfer bulk products onto a Rotary Table.
How to switch products from one line to another
This application show how you can change conveyor line lanes with ease using side guides.
Belt to Belt Conveyor Transfer for a cheese handling company using two tier packing system.
Transfer Conveyor for a Strapping Machine to be located in between the modular belt conveyors
Last Updated: 15-sep-26
Close Transfer Plates & Grip Side Belt Conveyors
C-Trak can offer a range of conveyor transfers supplied with exceptionally close transfer from conveyor to conveyor applications or conveyor to your existing machinery.
Take a look at the video below to give you an ideas for your applications.
How to achieve close transfers; Belts can be fitted with 50mm dia rollers which are fixed in position ensuring the closest transfer possible. We also offer knife end belt conveyor transfers.
Many 90° Degree transfers especially belt to belt will use a turn post to guide the product around the angle with ease. In the above video you can see this application on many of our designs. The cheapest solution is to lower one of the conveyors to the products simply drop onto the conveyor below. Automated pushers can also be incorporated on sensors to move the products from one conveying system to another. And lastly you can use rotary tables load and unload.
Turn Post Transfers for Smooth Transferal of Products
One of the easiest ways to transfer products from one conveyor to another is using turn post the video above shows just a sample of some of the systems C-Trak have designed and fabricated.
Side Grip Belt Gap Transfer - Conveyor to another
We are often asked for side belt conveyors to aid transfer from one conveyor to another where there is a gap between the conveyors this is easily done by using a side grip belt. Below is a video for a confectionery company needing to aligned their boxed cough sweets for the next process.
Can conveyors go sideways ?
As you can see above C-Trak have a unique design of side grip belt conveyor to aid transfer from one area to another.
Food quality Slat Transfers
close transfers using small rollers on the belt.
This application is stainless steel fabrication . A series of 12mm dia wheels are set within a radiused profile, these units can be ganged together to almost any length and width to suit your application.
Chain cross transfer conveyor
Transferring products at 90° and can be auto sensed acting as reject system or feeding your existing machines
Food quality transfer plates
Image shows a dead plate fabricated in S/S which is adjustable in and out and around a fixed pivot point ensuring no finger nip points. Transfer plates allow product to slide or be pushed onto next production process.
Food quality pusher transfers
Again in stainless offering live feed 90° conveyor transfer device. Product drives in to the pusher area, it is then sensed and the air cylinder then pushes the product at 90° to the normal flow.
How to Transfer unstable Products using Conveyors
Each of our systems will be custom made to suit your product range.
