How to unload products from existing Machinery or Conveyors
Sliding Discharge Pusher
This application uses a manual pusher discharge for handling plastic pots
Conveyor Discharge Plates
probably the cheapest way to discharge products from existing conveyor or machinery. This application was from a roller conveyor to a declined modular belt with grip flights
90° Discharge Conveyors
This application uses a automatic sensor which discharges product from one conveyor to another at a 90 degree angle.
Swipe Arm Discharging
It is relatively easy to use a sweep arm to discharge products.
Twin Side Belt Transfers
Grip belts can be used to discharge products often used when labeling, coding, printing and inspection.

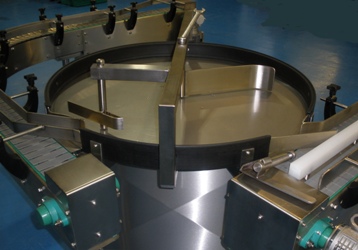

Rotary Table Discharge
Transfers discharging and loading to and from conveyors
Last Updated: 15-sep-26
Types of Discharge Conveyors
This application was for a dog food manufacturer who required a variety of sack sizes to be discharged from his existing machinery to one of our conveyor systems. the adjustable roller can be easily adjusted to accommodate the different size sack by screws and interlocking extension. Sacks are then discharged on to a modular plastic belt conveyor with gripy flights allowing the bags to be sent on an incline and around a bend on a true axis modular belt to the next process.
C-Trak can offer a range of conveyor transfers supplied with exceptionally close transfer from conveyor to conveyor applications or conveyor to your existing machinery.
