It's main purpose is to keep loose products in the centre of the conveyor belt by having sloped sides. The belt runs along the underside fabricated metal or plastic to form the trough shape.

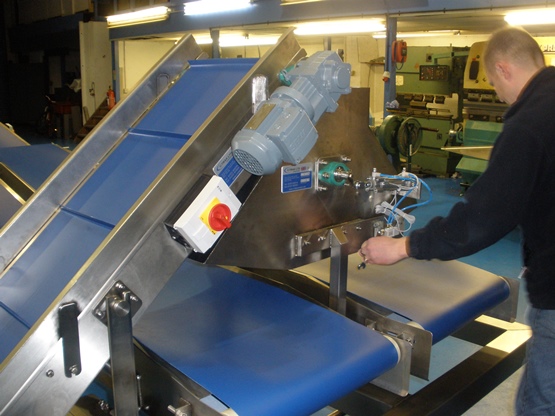

The application above is to convey loose products from one trough conveyor to another.

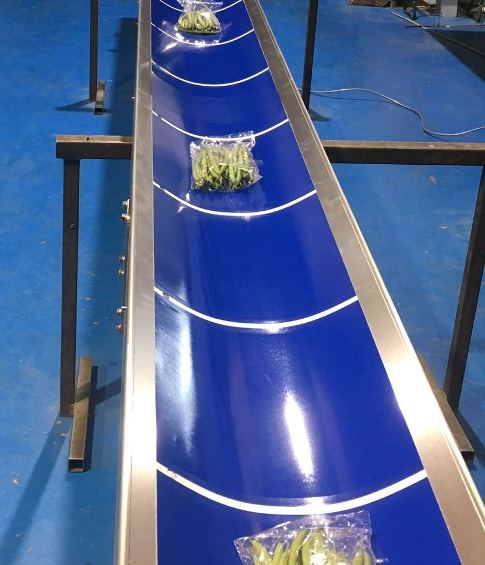

Lined Trough Conveyor Belt
The above image shows a trough conveyor with special belting with lines for manual product placement for accurate gaping space between the product.

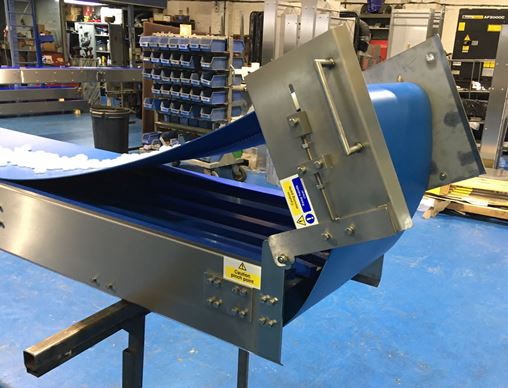

This conveyor has a quick release device for easy removal of belt for cleaning

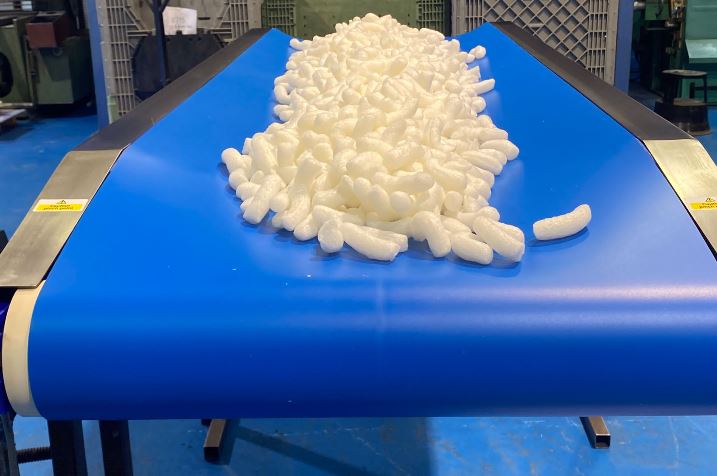

Motorised Drum Conveyor
This application has an internal motor in the drum shell unlike the traditional motor which is mounted on the side of the conveyor.

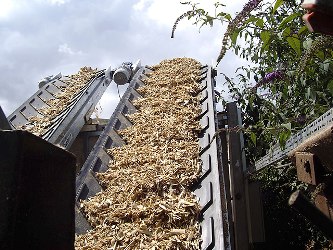

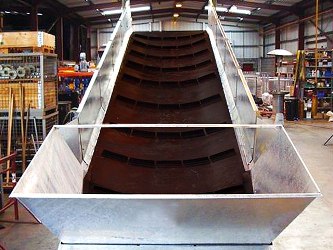

Industrial Trough Belt
Troughed Belt Conveyor for Loose Products
C-Trak offer a wide range of Trough Conveyors from robust industrial farming applications to the more sterile environment for the food sector.
It is simply a conveyor that forms a trough shape where the sides are angles to carry loose bulk products. The Belt is run over ider rollers.
Cereal with Loose Raisins Products with Food Belt
This application was for a cereal manufacturer transferring loose raisins via a hopper onto a incline trough belt conveyor dropping onto another trough conveyor then transferring to a flighted belt conveyor. This video shows just one of the trough conveyors.
Fabricated Stainless Steel Frame

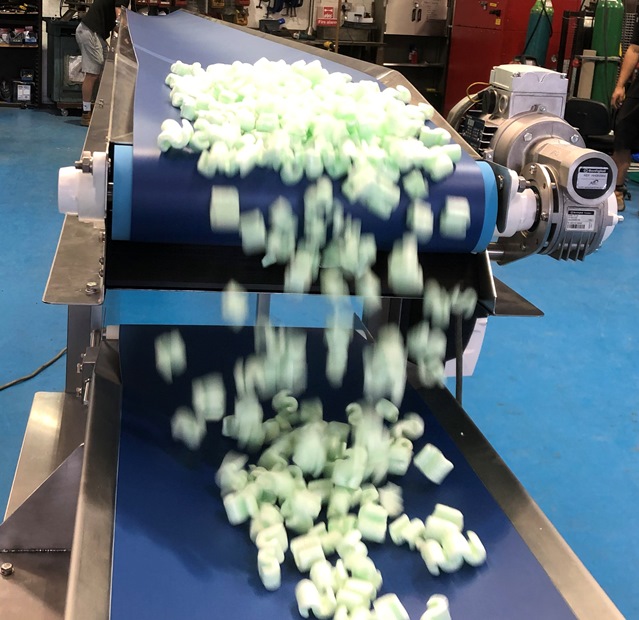

The project below is for a customer who has loose product being transferred from one trough conveyor to another using a simple drop solution. The product is food but for the purpose of the video trials we used packing foam.
Modular Designed Conveyors for easy maintenance
The video below was a custom build designed solution for handling food products on a conveyor system mounted on a high raised frame.
To enable easy access and maintenance the conveyors were all modular based in small sections so one conveyor could be removed / cleaned or maintained without having to dismantle the complete system.
C-Trak Video of the Modules in place
All Stainless Steel construction with food quality belts were used throughout the project.
This style of conveyor makes installation easy due to the design element. If you require C-Trak to custom build a conveyor for your products please do not hesitate to call.
Why C-Trak Conveyors
All our conveyors are designed in house and come with a full warrantee. We have a customer service we are proud of and have many repeat customers who are happy to recommend us.
Advantages
Our Conveyors are built to last and designed with your products in mind we serve our customers well and will offer impartial advice on the best application for your material handling.
