They are not powered by a motor and rely on gravity or a push to move the item along the conveyor track. Which with today’s cost of electricity is an added bonus.
Gravity Track with special purpose drip tray underneath
Mini Rollers for end of Line
Heavy duty Roller Track
What is the difference between gravity rollers and lineshaft rollers?
Gravity Roller do not have a power supply and rely on either slight incline to use gravity to move products or manual pushing. LineShaft Roller are powered using band and a motor.

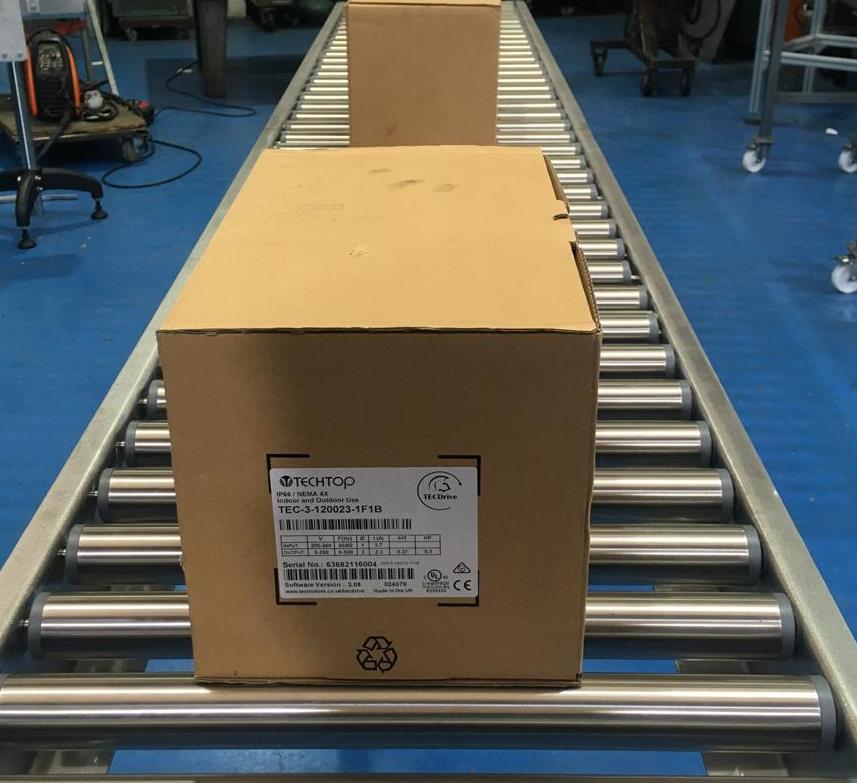

Mild Steel Painted Gravity Roller Track for handling Boxes.
Gravity Rollers come in many variable sizes and incorporate free spinning rollers typical applications are;-
Packing areas
End of Conveyor Line
Manual Loading of Conveyor Lines
Heavy machinery components / automobile industry
Factory logistics
Warehouse Automation
Automation on a Budget
Gravity Fed Conveyors are a cost effective way without using motors. This style of conveyor are best suited to heavy to medium duty flat bottomed products such as boxes so as not to trap goods in between the rollers.
Great for warehouse and factory applications for boxed material handling. The products just glide over the top of spinning rollers.
Gravity Conveying the Easy Way with no Power
C-Trak offer a variety of gravity roller conveyors for product handling. One of the cheapest options on the market.
its power relies on natural gravity which is free!! Movement at the end of your finger tips literally. A small push will enable your product to glide along the rollers they are usually set on a slight decline to enable continuous movement.
Many products can be moved on this type of conveyor but it is most suitable to flat based products. Other options of roller conveyors include
Video above : This application was for a warehouse logistics company that required different sized boxes to be moved.
Loading and unloaded manually. The conveyor was supplied with adjustable side guides to accommodate the different box sizes.
Gravity Track Conveyors allow products to be moved in the simplest way using gravity decline or allowing products to be manually pushed.
Back to our Gravity Conveyors the images below show easy to use product handling conveying.
Gravity Rollers Conveyors
Roller diameters from 25mm - 30mm - 40mm - 50mm supplied in either plastic, stainless steel, bright zinc plated mild steel or self colours mild steel. Rollers can be fitted with a spring loaded or fixed spindle. Spindles can be round or hexagonal.

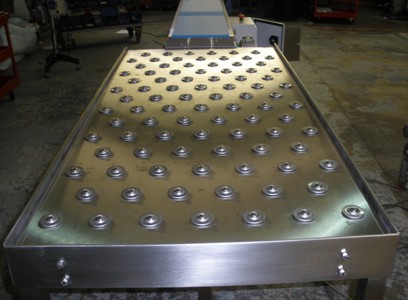

Skate Wheel Conveyors & Ball Tables
Skate wheel conveyors ensure that the container stays in orientation when traveling through a bend, they are a very cost effective way of transporting your products. Please view our range of mobile expanding conveyor range.
Close Pitch Gravity Roller Track
30mm diameter rollers set at 35mm pitch mounted in a clean line stainless steel framework. This is ideal for transporting smaller products.
Low Level Gravity Track
40mm diameter rollers at 45mm pitch. Mounted in a stainless steel frame. This unit is fitted with en end stop and adjustable feet.
Standard Roller Track
50mm diameter rollers, set at a pitch of 80mm. Frameworks can be either mild steel painted or stainless steel depending on the application.
Small more irregular shaped goods may get stuck in between rollers and may be better suited with a more traditional flat belt conveyor.
