How to Turn Products on your Conveyor Line for Presentation
Conveyor Laydown Orientation
This application was for a cosmetic company that required upright box to be laid down ready for packing side guides were used to align the product before striking a plate to topple product over to lay on it side and straightened up with another guide to take it to packing machine.
Orientation of your products can be achieved in multiple ways it maybe that simple side guides will be sufficient or potentially a complex series of sensors and pushers maybe required below are some examples of C-Trak Product Orientations.
Box Turner at 90 Degrees
This application was for handling box's of potatoes being turned at 90 degrees to transfer to another modular belt conveyor using turn posts to orientate the product to transfer.
Transfer Arm Product Orientation

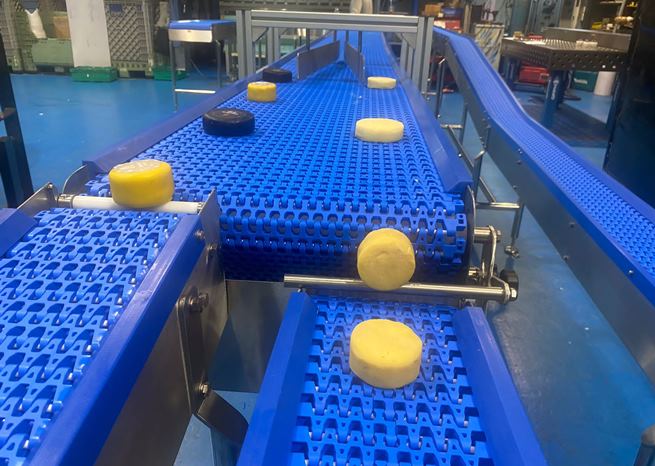

Transfer with Swipe arm to move cheese to another conveyor for processing.
Flip & Turn Products on Conveyors
Simple but affective way to turn a product over on your conveyor line.
Rotary Table with Glass Bottles with Orientation sides for discharge
Last Updated: 17-feb-26
How to Align & Turn Products with ease
C Trak offer a range of conveyors that have different bespoke turning and orientation solutions. Most production lines have at some point a critical positioning requirment.
The best way to turn your products on conveyor lines with depend on the presentation, size and weight of your goods. typically simple solution can be achieved by the following:-
Turn Posts
Guiding Posts
Lift and Rotate
Flip over devices
Turner Plates for Lay down
Swipe Arms
Flip over Product orientation device
This application was for a wet wipe company requiring its wet wipes to be flipped over to the other side this was achieved by guide and tipper plate.
Orientation on Wine box was achieve by a simple bar which catches the end of product and flips it over.
Conveyor Turn Post for perfect orientation
Pusher transfer turning product
This application was for pastry packs using an automatic sensor that pushes the product from one modular belt line to another achieving a 90 degree angle turn.
